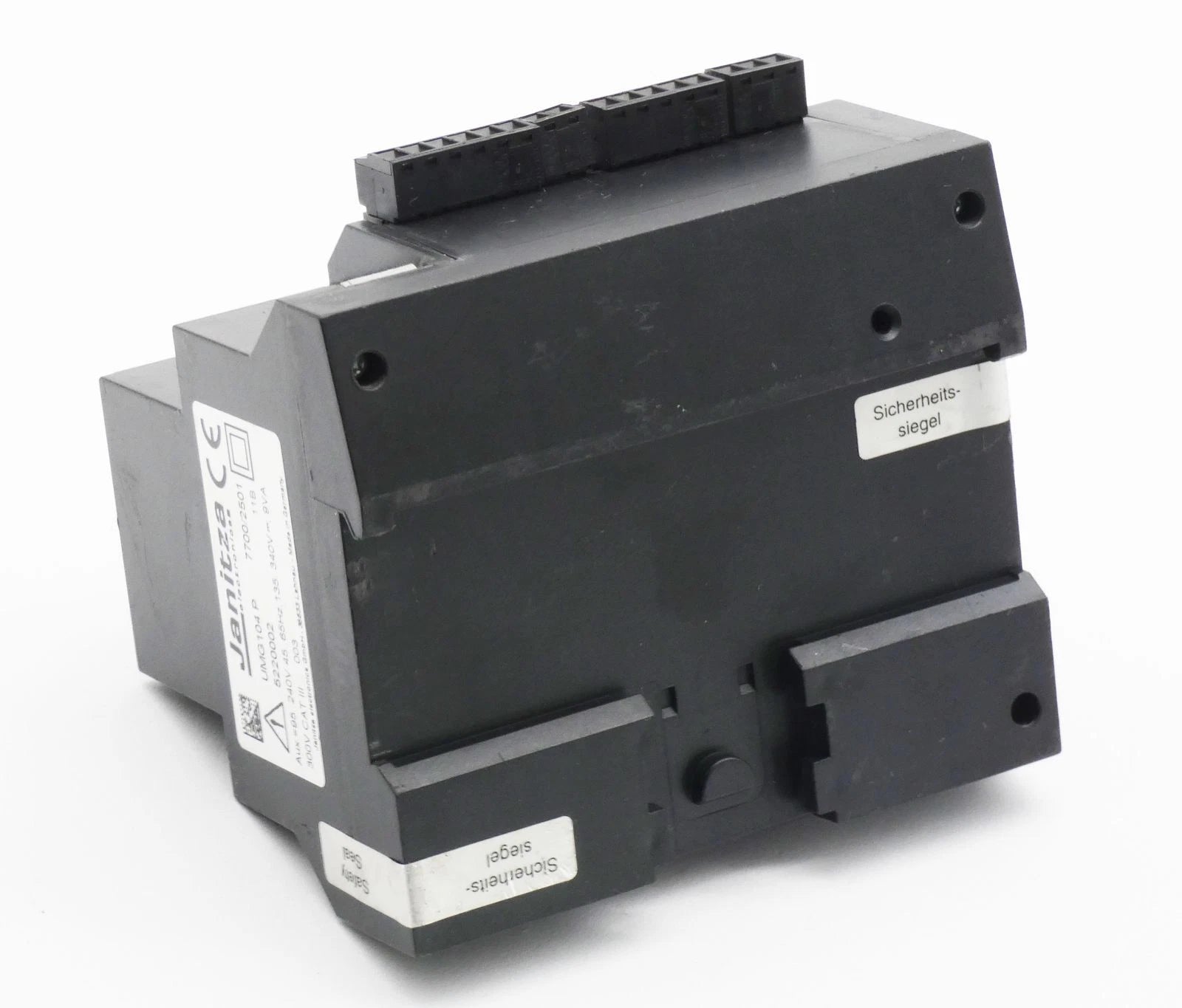

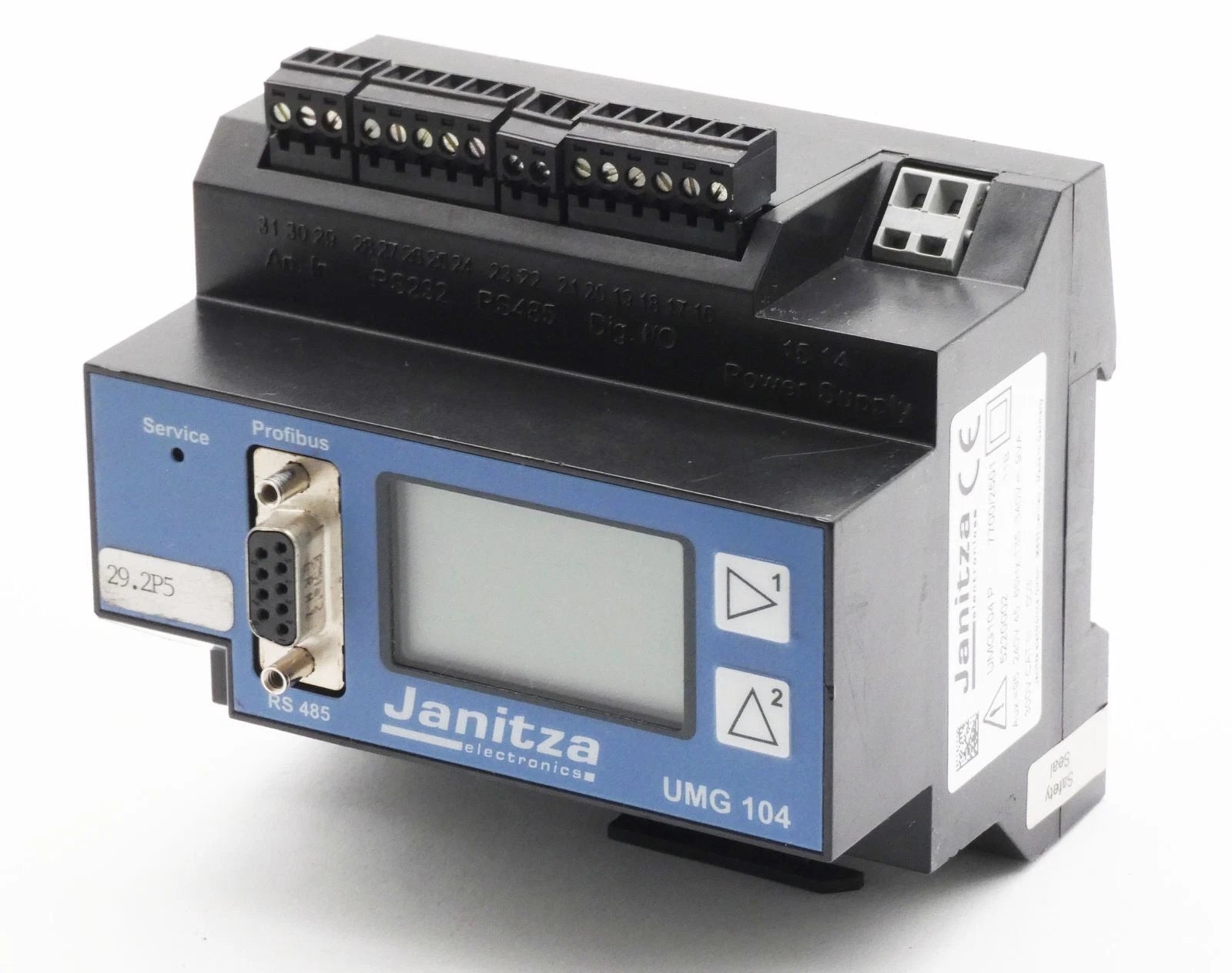

High-Precision Industrial Power Analyzer for Accurate Monitoring

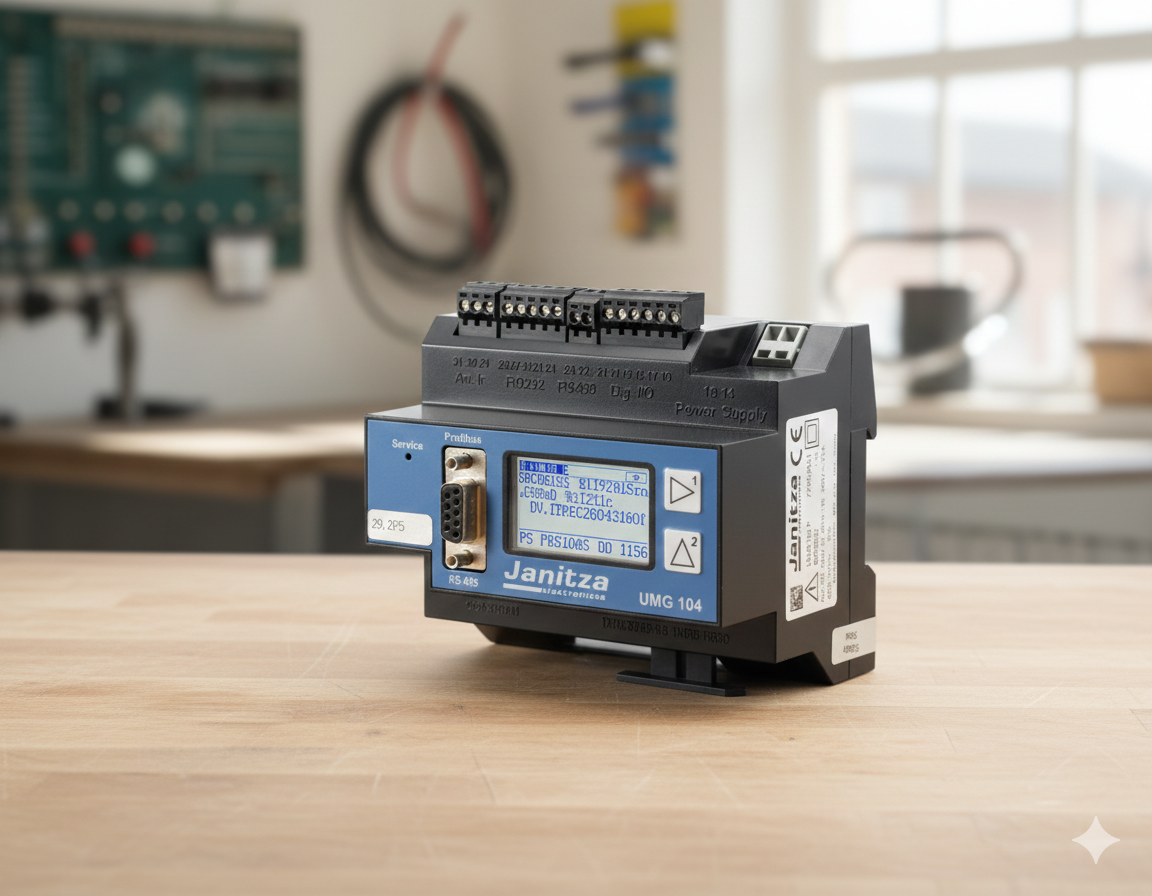

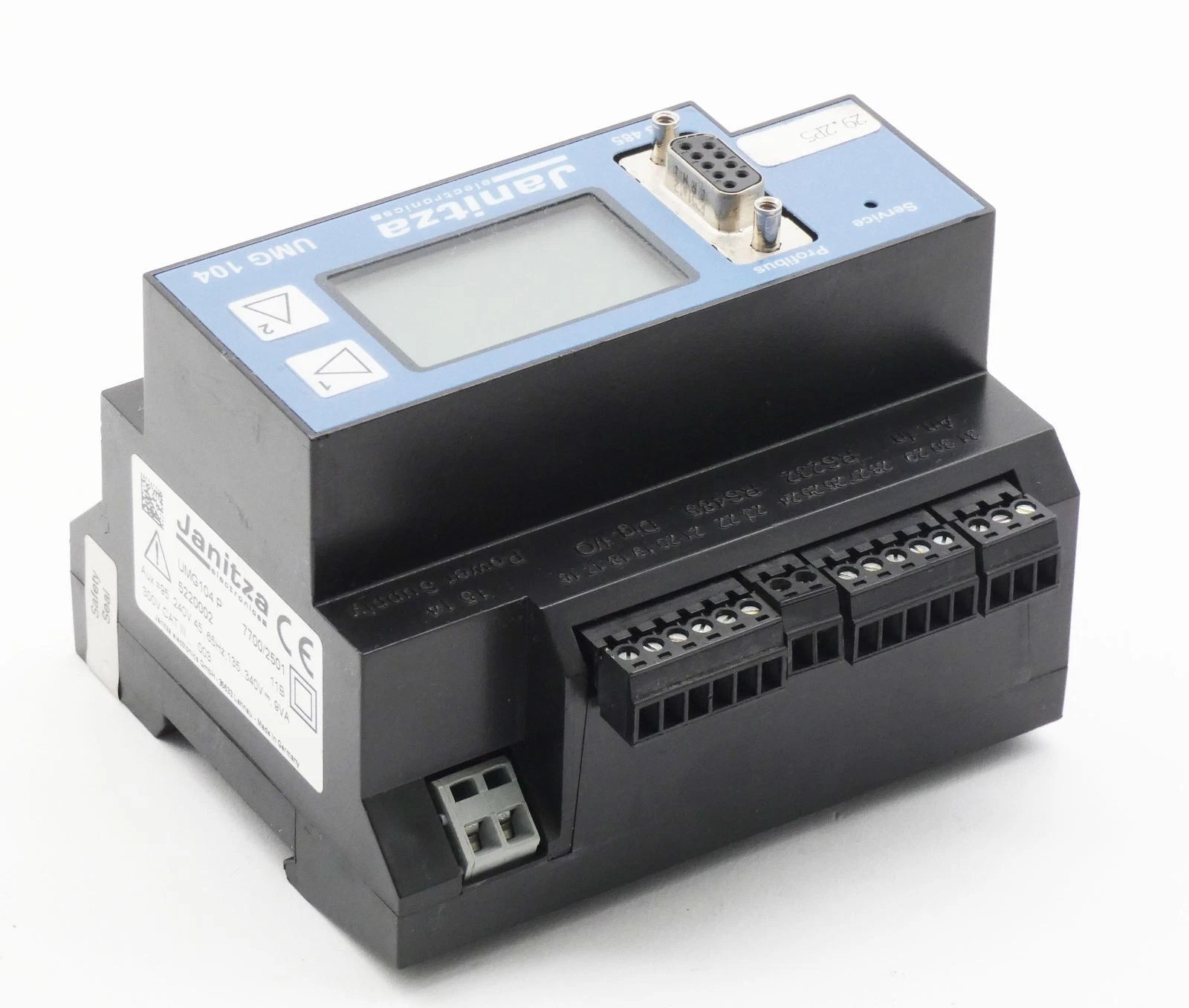

The UMG 104 P is a professional-grade power analyzer designed for precise monitoring of three-phase electrical networks. It delivers advanced energy measurement, harmonic analysis, and power quality diagnostics — making it ideal for industrial plants, commercial facilities, data centers, and automated control systems. Built for reliability and seamless PLC/SCADA integration, this analyzer ensures accurate performance and long-term stability for modern electrical environments.
Key Features & Benefits
Advanced Power Quality Analysis – Measures voltage, current, active/reactive power, frequency, and harmonic distortion.
Supports Multi-Channel Monitoring – Equipped with multiple voltage and current inputs for three-phase or single-phase systems.
High-Speed Data Logging – Captures events and waveform data with fast sampling for accurate diagnostics.
Built-In Memory Storage – Internal flash memory allows long-term energy tracking and historical reporting.
Flexible Communications – Compatible with RS-485/Modbus and other industrial protocols for PLC, BMS, and SCADA systems.
Energy & Cost Management – Provides precise kWh reporting to help reduce energy consumption and operational costs.
Durable Industrial Construction – DIN-rail mountable design built for control panels and harsh industrial environments.
Specifications
-
Device Type: Industrial Power Analyzer / Energy Quality Meter
-
Phase Type: Three-phase (3P)
-
Voltage Measurement Range: L-N and L-L ranges suitable for industrial networks
-
Current Measurement: Multi-channel, nominal 5 A via CT (configurable per installation)
-
Harmonic Analysis: Up to 40th harmonic, THD measurement, sequence components, unbalance detection
-
Power Measurement: Active, reactive, and apparent power; frequency; power factor
-
Data Logging: Internal memory for long-term measurement storage, configurable intervals
-
Sampling Rate: High-speed, suitable for transient event capture
-
Communication Interfaces: RS-485 (Modbus RTU), RS-232, optional Profibus
-
Mounting: DIN-rail mountable for control panels
-
Operating Conditions: -10 °C to +55 °C, 5–95% humidity (non-condensing), indoor use
-
Warranty / Service Life: Typically 10–15 years warranty; designed service life 20–25+ years
-
Applications: Industrial power monitoring, energy management, building automation, solar/PV monitoring, commercial facilities
